Permian Basin Synthesis Project

Data and Models for Recovering Existing and Undiscovered Oil Resources from the Largest Oil-Bearing Basin in the U.S.

Stephen C. Ruppel, principal investigator; Robert Loucks, Charles Kerans, Rebecca H. Jones, H. Seay Nance, Cari L. Breton; Scott Hamlin, Julia Gale, Jeff Kane, Angela McDonnell, Edgar Guevara, Fred Wang, Robert Reed, Wayne Wright, Harry Rowe, Necip Guven, Ruarri Day-Stirrat, Dan Jarvie, Hongliu Zeng, Qilong Fu (assisted by Rosalba Mendoza, Mary Bezara, David Soto, Norman Meyer, Dana Helbert, Martin Handzlik, Walaa Ali, and Ted E. Playton).

PROJECT SUMMARY

The goals of this project were to produce a detailed, comprehensive analysis and history of Paleozoic depositional and reservoir systems in the Permian Basin and to create spatially integrated databases of depositional, stratigraphic, lithologic, and petrophysical properties. This work forms a fundamental basis for providing oil and gas operators with (a) outcrop and subsurface, reservoir-specific data and models to be applied to engineering- and completion-based redevelopment of existing reservoirs; (b) a detailed regional depositional and stratigraphic framework for applying such models to new exploration targets; and (c) a strong basis for developing new models and concepts for exploration. These data will decrease the risk and increase the efficiency of exploiting the remaining hydrocarbons in the Permian Basin and define new opportunities for drilling. Additionally, the project gives a greatly improved understanding of the geological processes that led to the evolution of the basin and in turn provide fundamental data sets for reinterpreting and updating basic theories of basin evolution, including structural and stratigraphic history, diagenetic history, source-rock maturation, and fluid flow. Initial funding for the 3-year project was provided by the Department of Energy, with incremental funding through participation and sponsorship of oil companies with interests in the basin.

PROJECT FINAL REPORT AND DATA

Project Final Report [PDF]
Geothermal Gradient Report [PDF]
Project GIS data (Arcview 3.x project files): ISPB_GIS_CD.ZIP




Data and Reports


Written reports [PDF]

Core analysis data files [Excel]

Reference lists [Word]

Lists of BEG cores in Permian Basin [Excel]

Cross sections

Regional maps

Type logs

Powerpoint presentations

Posters [PDF]

Permian











Artesia Group

Artesia



References

Core list



Nance Artesia, 2006



    Dollarhide Field



Yates 15-7-C



Delaware Mountain Group

Delaware Mountain Group



References

Core list



Nance DMG, 2006



   Apollo Field



MU 21-36 No. 2



   Little Joe Field



PU 31-A No. 1



   Quito East Field



U 18-29 no. 6
U 18-29 no. 10



   War-Wink Field



TU 1
TU 1H
TU 2H
TU 4H



Grayburg







Core list



   Block 2 Field





110W
RU 4
RU 5



   Johnson Field



reservoir xs
regional xs



   N Foster Field



reservoir xs



   S Foster Field



reservoir xs
regional xs



   North McElroy Field



NMU 2858
NMU 3713
NMU 3738
NMU 3817
NMU 3855
NMU 3969
NMU 4021
NMU 4123
NMU 4156
NMU 4531
NMU 4611



reservoir xs
reservoir xs



  type log

   Rhodes Cowden Field



reservoir xs



   North Cowden Field



reservoir xs
Holt Unit xs
regional xs



   South Cowden Field



Colbert Unit 10
Colbert Unit 11
Emmons Unit 111
Emmons Unit 112
Emmons Unit 115
Emmons Unit 121
Emmons Unit 135
Emmons Unit 136
Emmons Unit 140
Emmons Unit 142
Emmons Unit 143
Emmons Unit 146
Emmons Unit 203
Emmons Unit 210
Emmons Unit 213
Emmons Unit 216
Moss Unit 6-16
Moss Unit 6-20
Moss Unit 8-12
Moss Unit 9-17
Moss Unit 13-6
Moss Unit 16-14
Moss Unit 21-16
S Cowden Unit 7-10
S Cowden Unit 8-19



reservoir xs1
regional xs



type log1

type log2



San Andres





References

Core list



Kerans SA, 2006



    Emma Field



Emma 9-7
Emma 10-9
Emma 10-35
Emma 62
Emma 79
Emma 94
Emma 99



    Penwell Field



Penwell 194



    Fuhrman Mascho Field



FMU 12
FMU-35-3
FMU 124
FMU 140
FMU 605
FMU 806

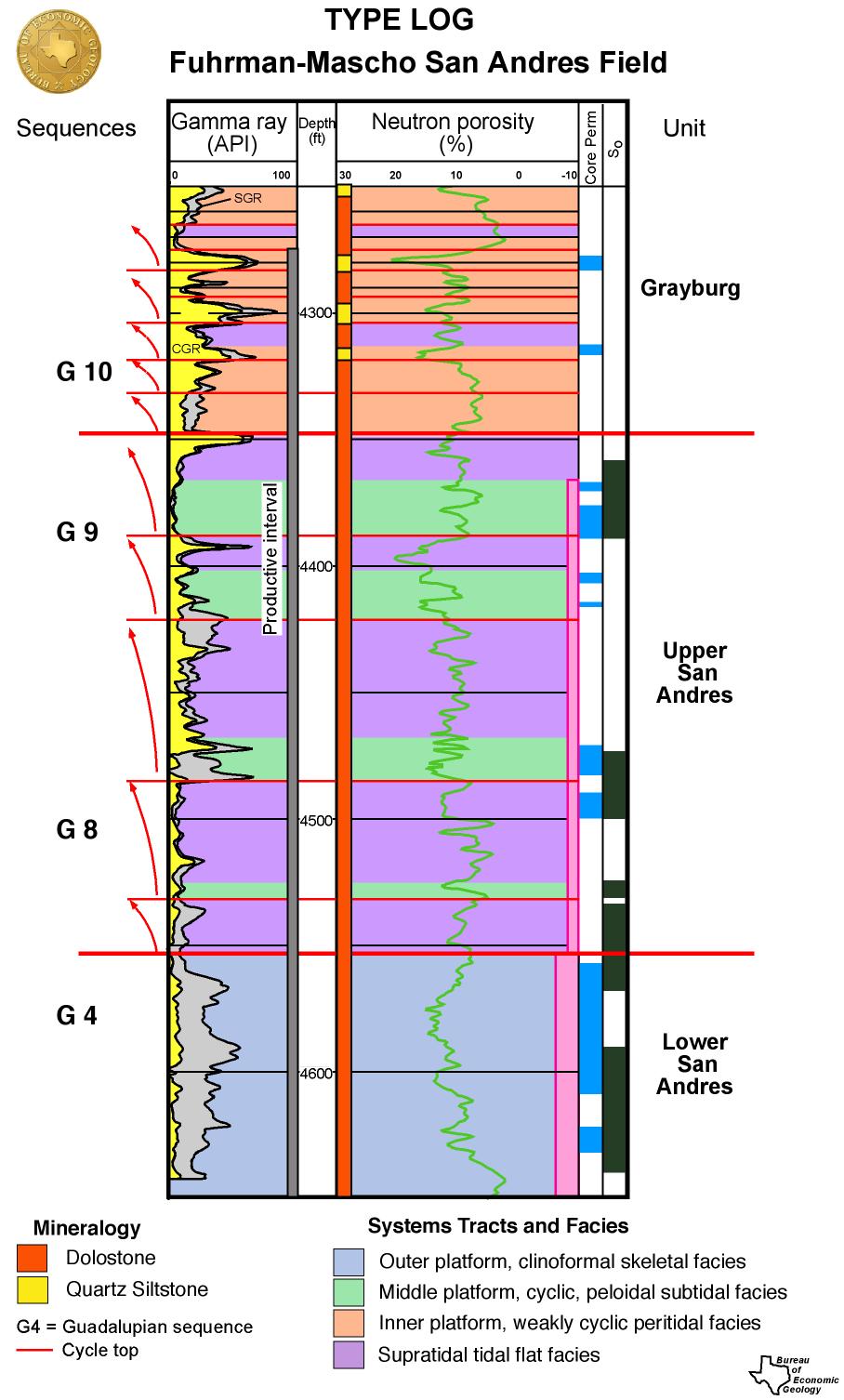

type log

Ruppel FMU_2001

Poster 1.1
Poster 1.2
Poster 1.3

    Taylor Link Field



WSA #84
U 70P
U B85P
U E tract B83P
U J127P
U 151P
U TLWSA 1



Clear Fork

outcrop report



References

Core list



Ruppel CF, 2006



    Diamond M



McLaughlin 1119
McLaughlin 290




    Dollarhide Field



DCFU 4-11
DCFU 8-4
DCFU 8-30
DCFU 10-31
DCFU 17-16
DCFU 20-3
DCFU 27-28



    N Dollarhide Field

  NDU 115

reservoir xs1reservoir xs2



type log



    Empire Field



reservoir xs

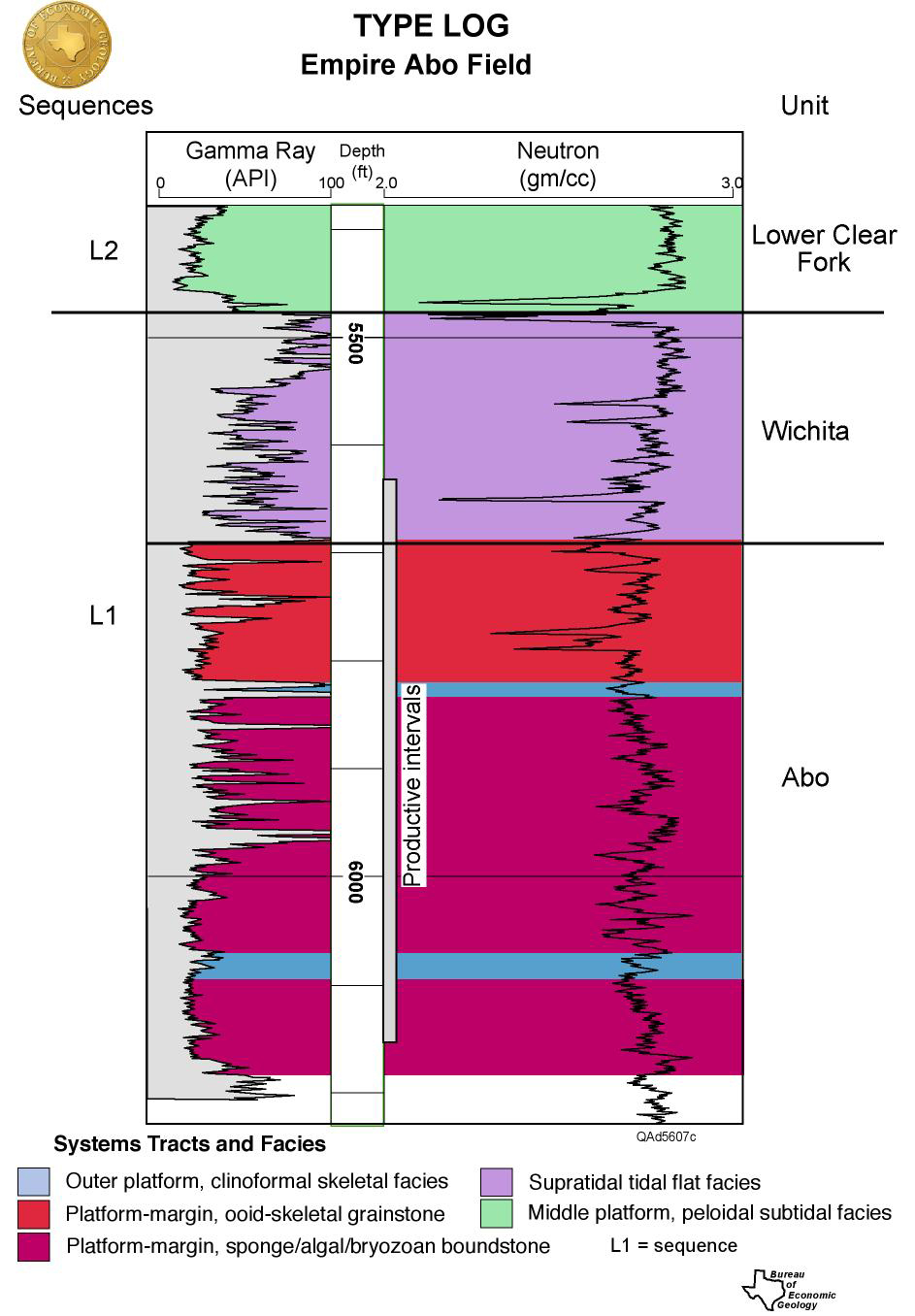

type log



    Keystone S Field



S 404
S 437



reservoir xs1
reservoir xs2



type log



    Russell Field



RCFU 129
RCFU 310



type log



    Drinkard Field



NEDU 514



    Fullerton Field

Field Study

FM-1
FCU 5927
CF 6429
CF IV-25
CF IV-30
CF SCAL



reservoir xs

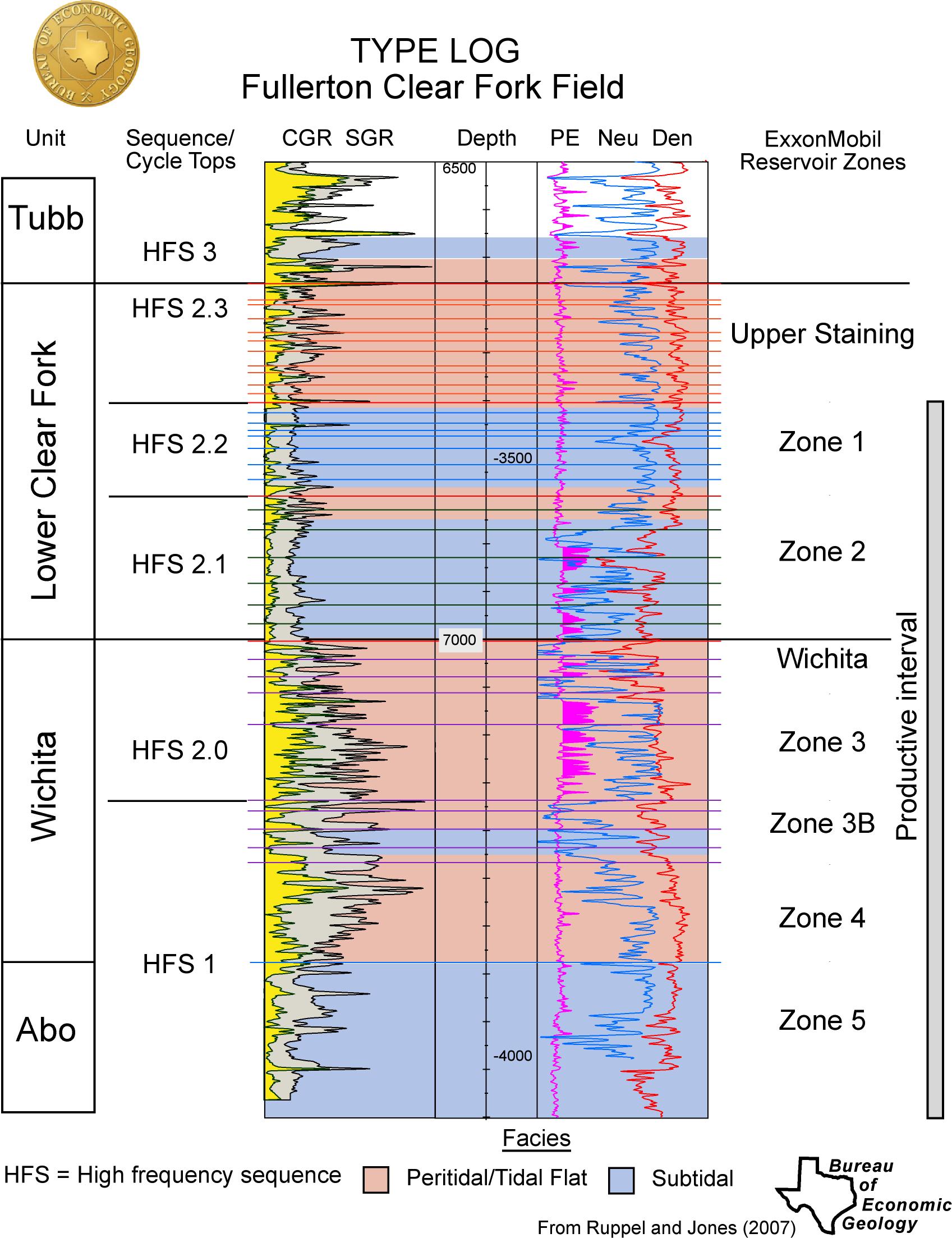

type log



Poster 1.1
Poster 1.2
Poster 1.3

    Monahans Field



SS 164
SS 270
SS 314



reservoir xs

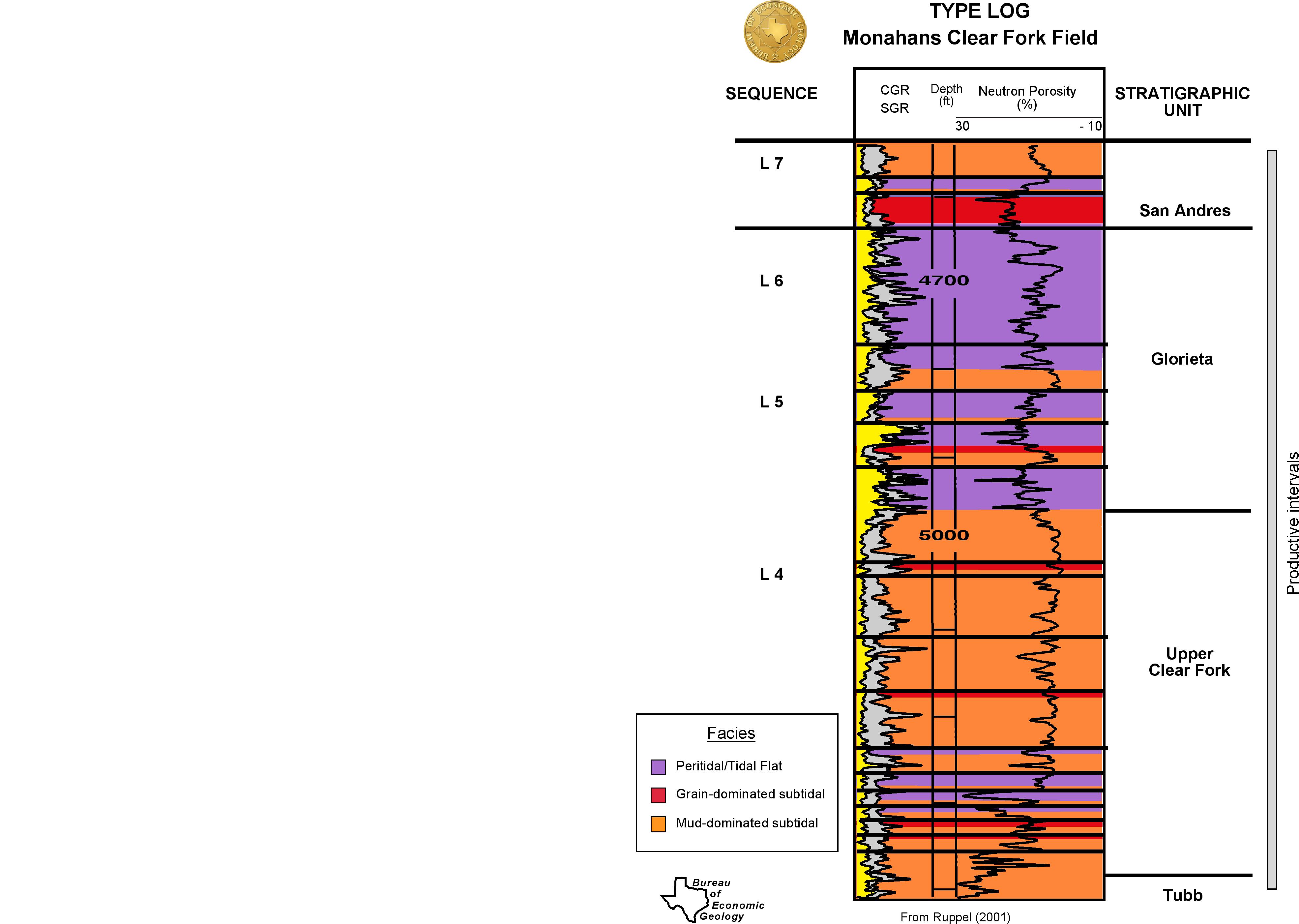

type log



    North Robertson Field



NRU 207
NRU 1204
NRU 1509
NRU 1510
NRU 3319
NRU 3533



    South Wasson Field

Field Study

S Wasson 7531



reservoir xs

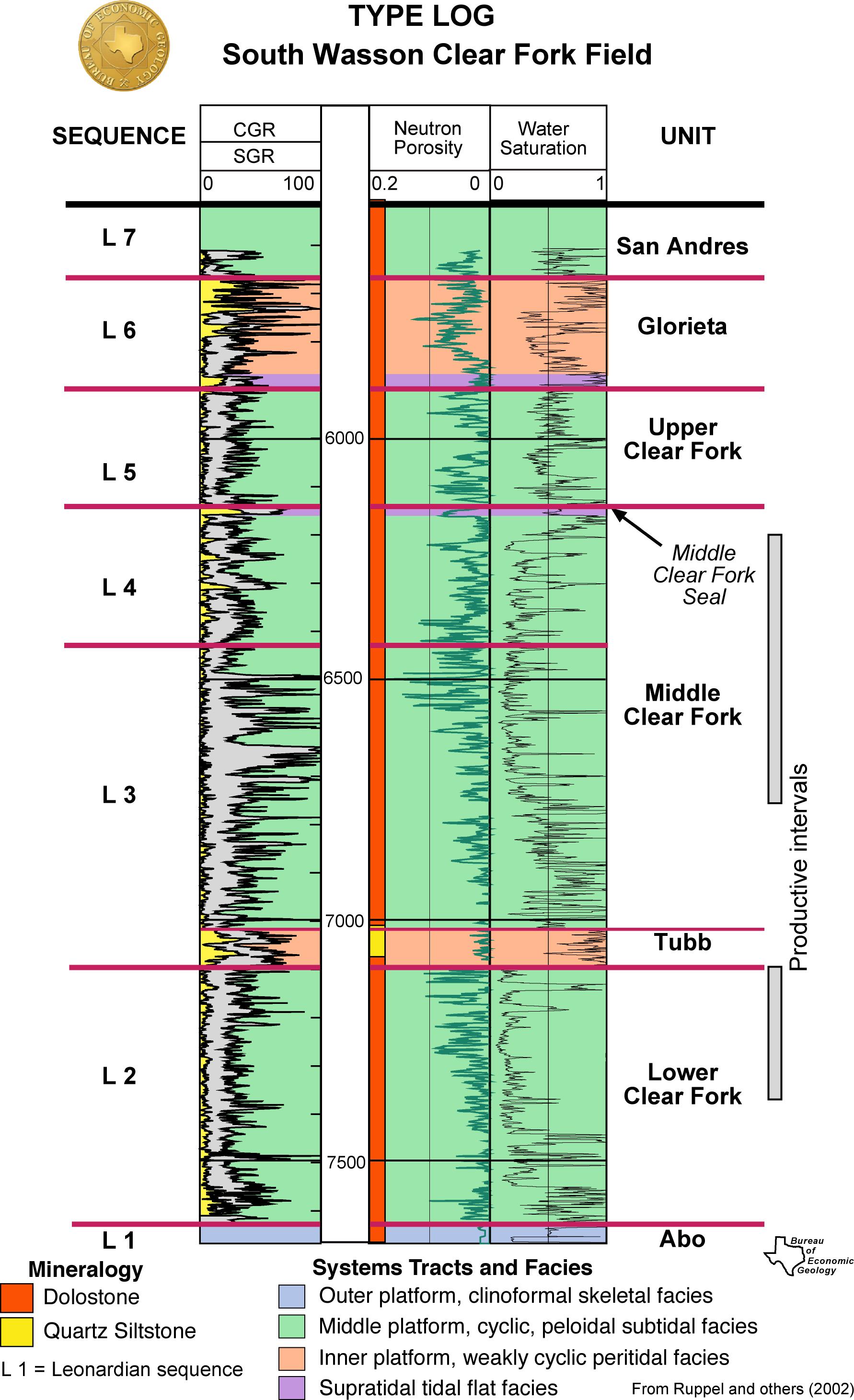

type log



Poster 1.1
Poster 1.2
Poster 1.3

Bone Spring



Swearingen 14-1
Federal 5-1
Federal 35-1
Mescalero Ridge
University 18-26 A1
Jackson #1

References

Core list



Spraberry Dean





References

Core list



Guevara Spraberry, 2006



Wolfcamp

Wolfcamp slope
Field Study



References





Playton Wolf slope, 2006

Poster 1

    Apollo Field



U Blk21 232



    Bakke Field



U HH 1



    Block 9 Field



6E
13AB #1
22 E3
BA7



reservoir xs

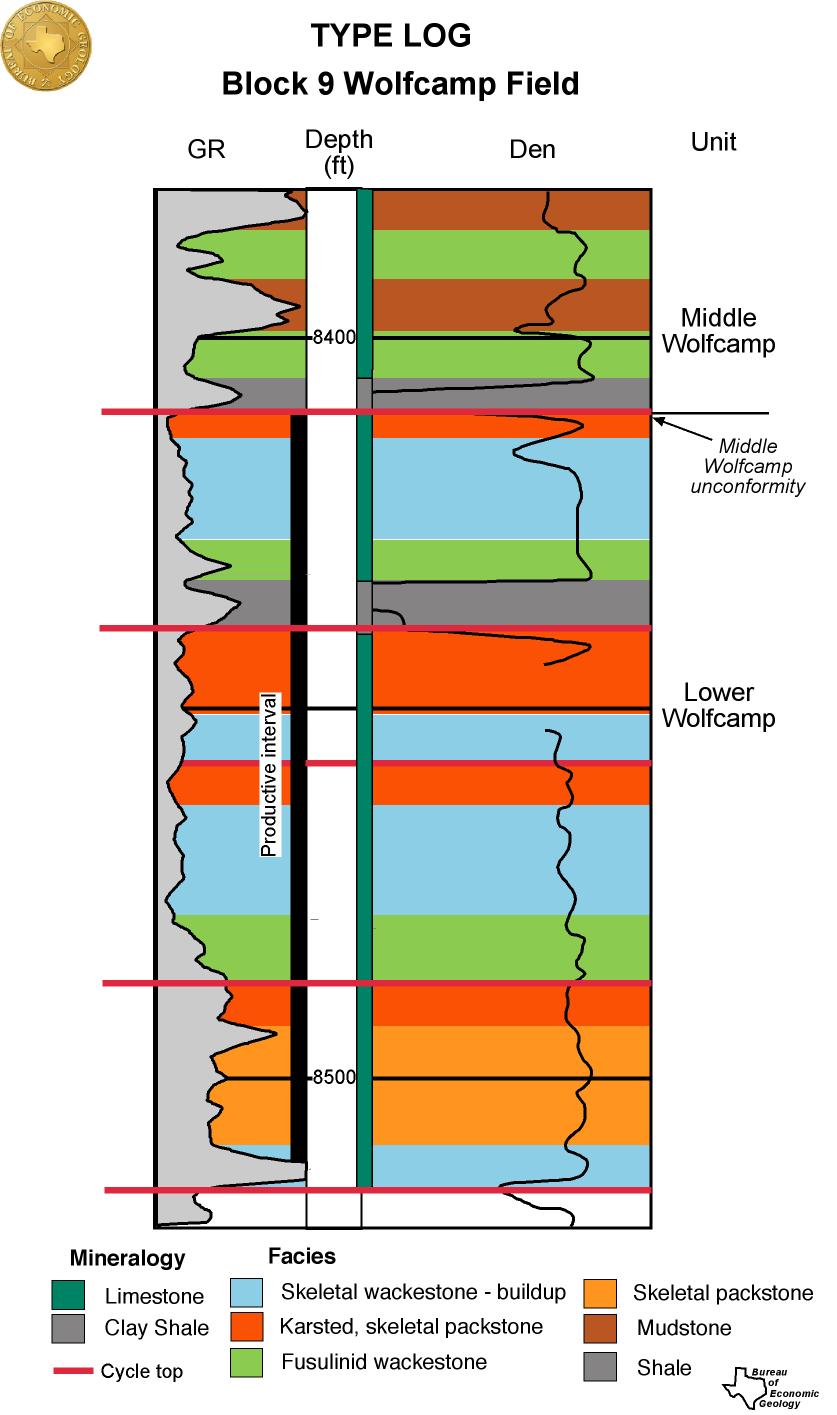

type log



Poster 1

    War-Wink Field



U 18-26 #1



Pennsylvanian







Core list





Wright Penn, 2006



   Bakke Field



U 1-6 #2



   Block 9 Field



AT 7
U 4-B (17)
U #9-A-2 (11)
U #7
U #25



reservoir xs



   Parker Field



AD 3
AD 3.2
V 7



Cisco

Cisco



References

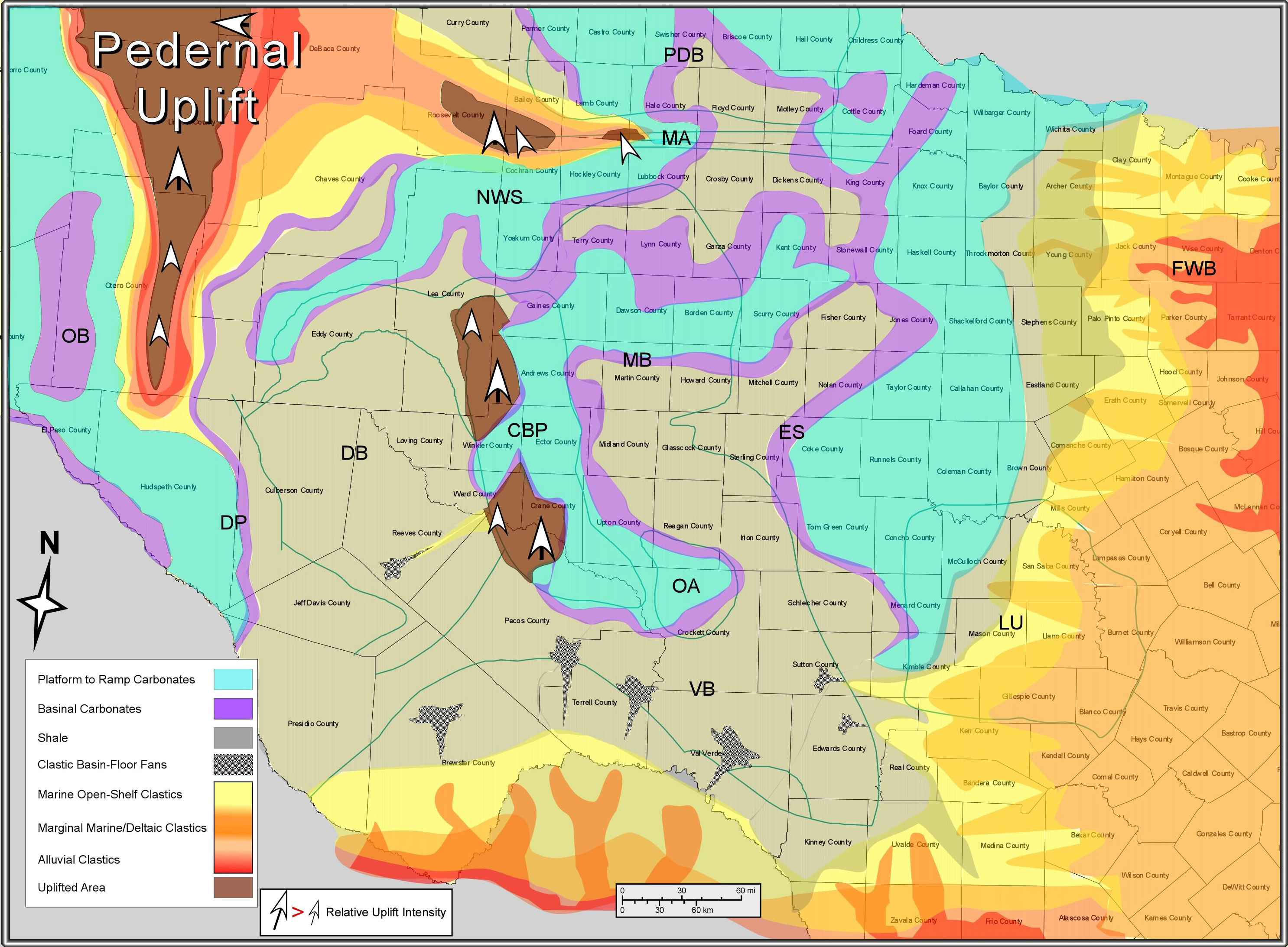

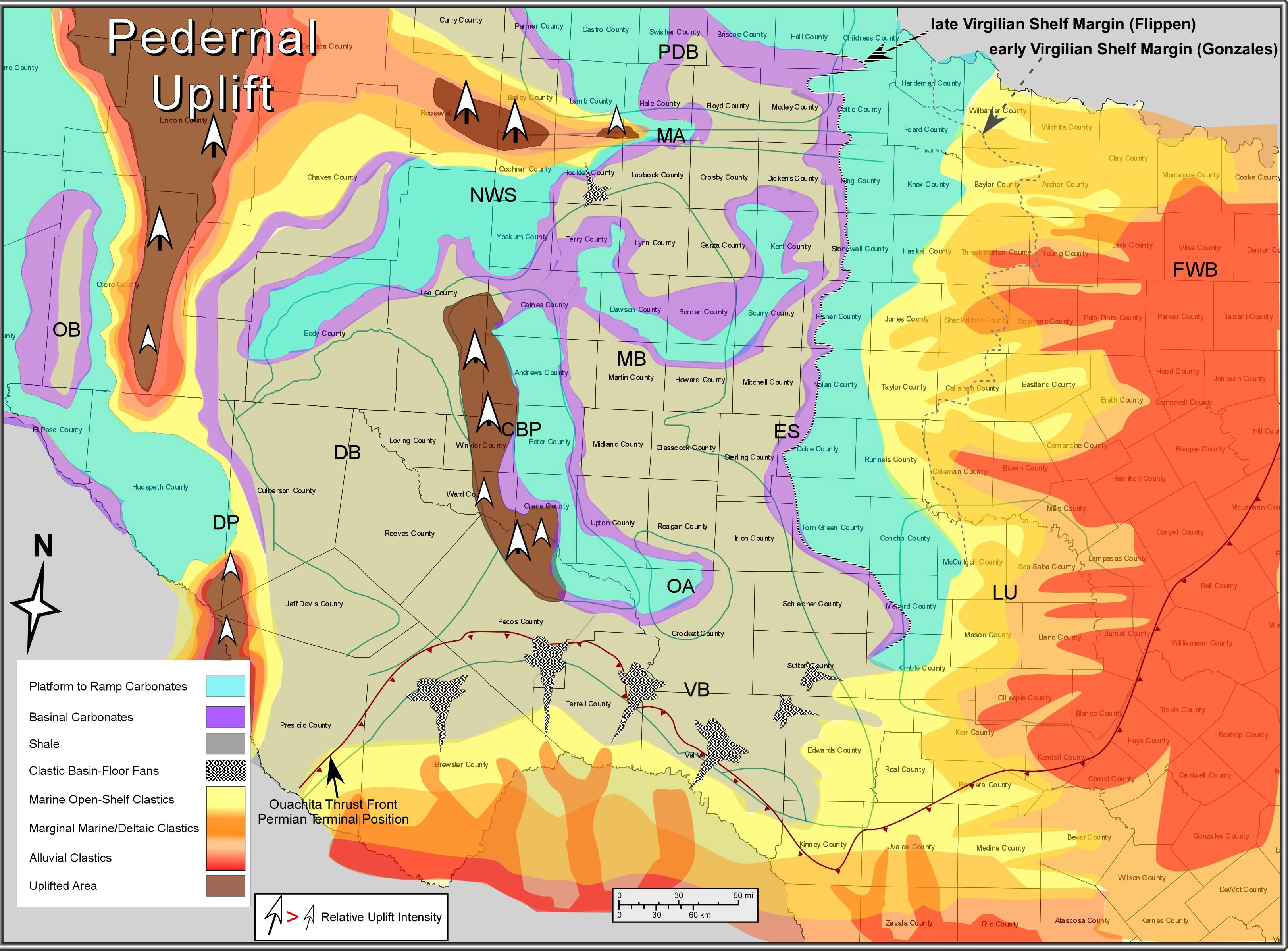

  paleogeography map

Canyon

Canyon



References



  paleogeography map

Strawn

Strawn



References

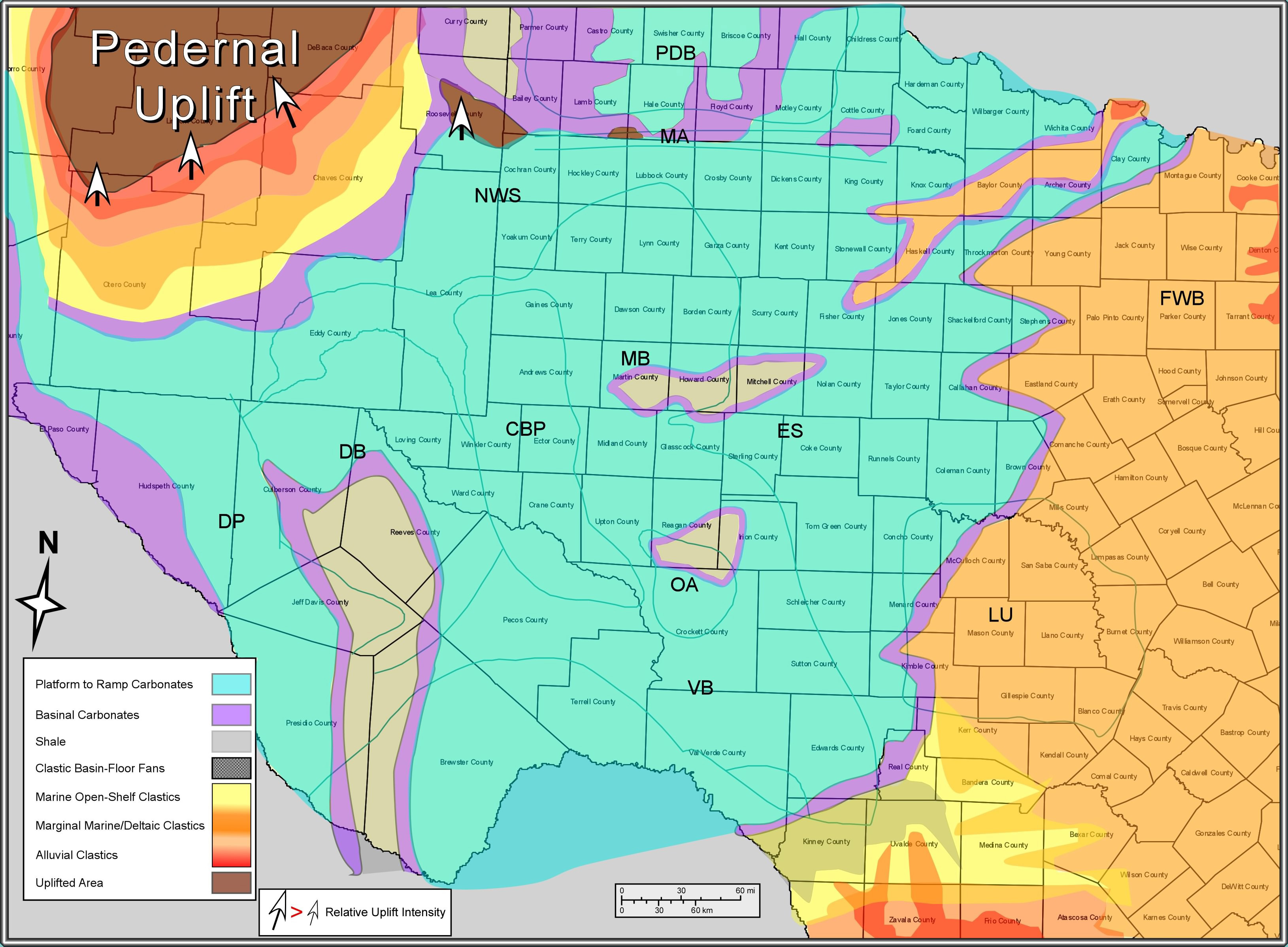

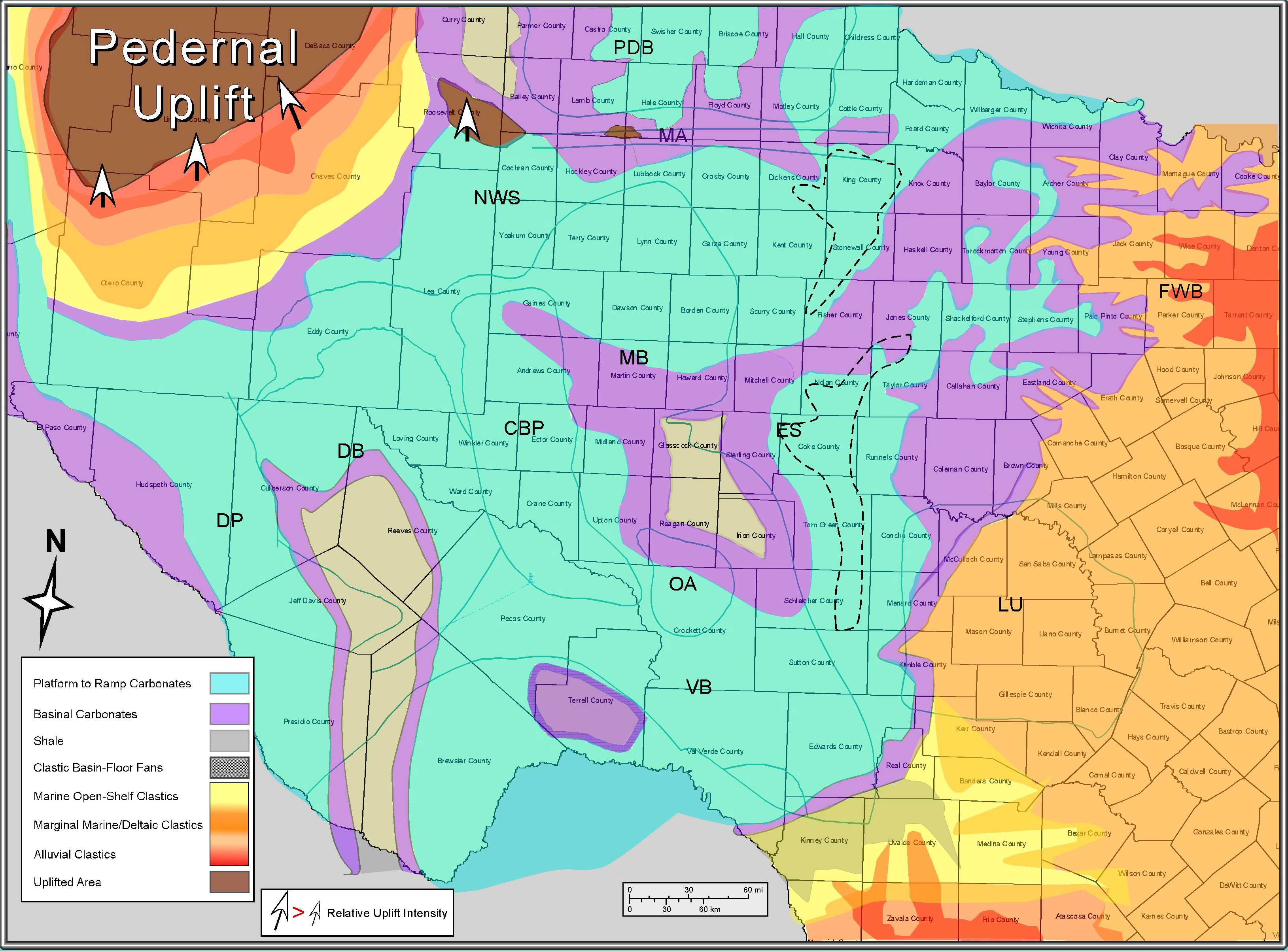

  paleogeography map1; paleogeography map2

Atoka

Atoka



References

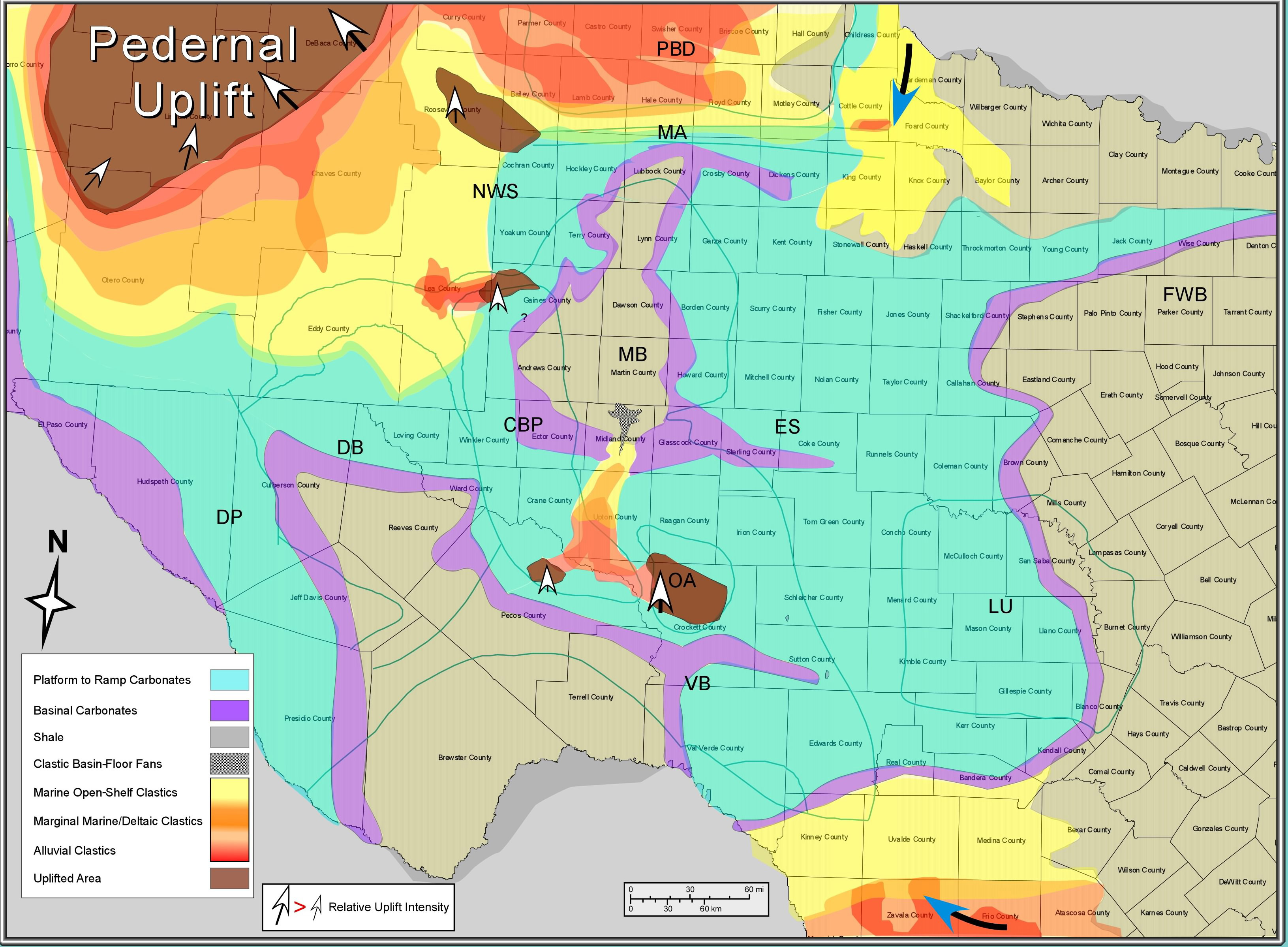

paleogeography map



Morrow

Morrow



References

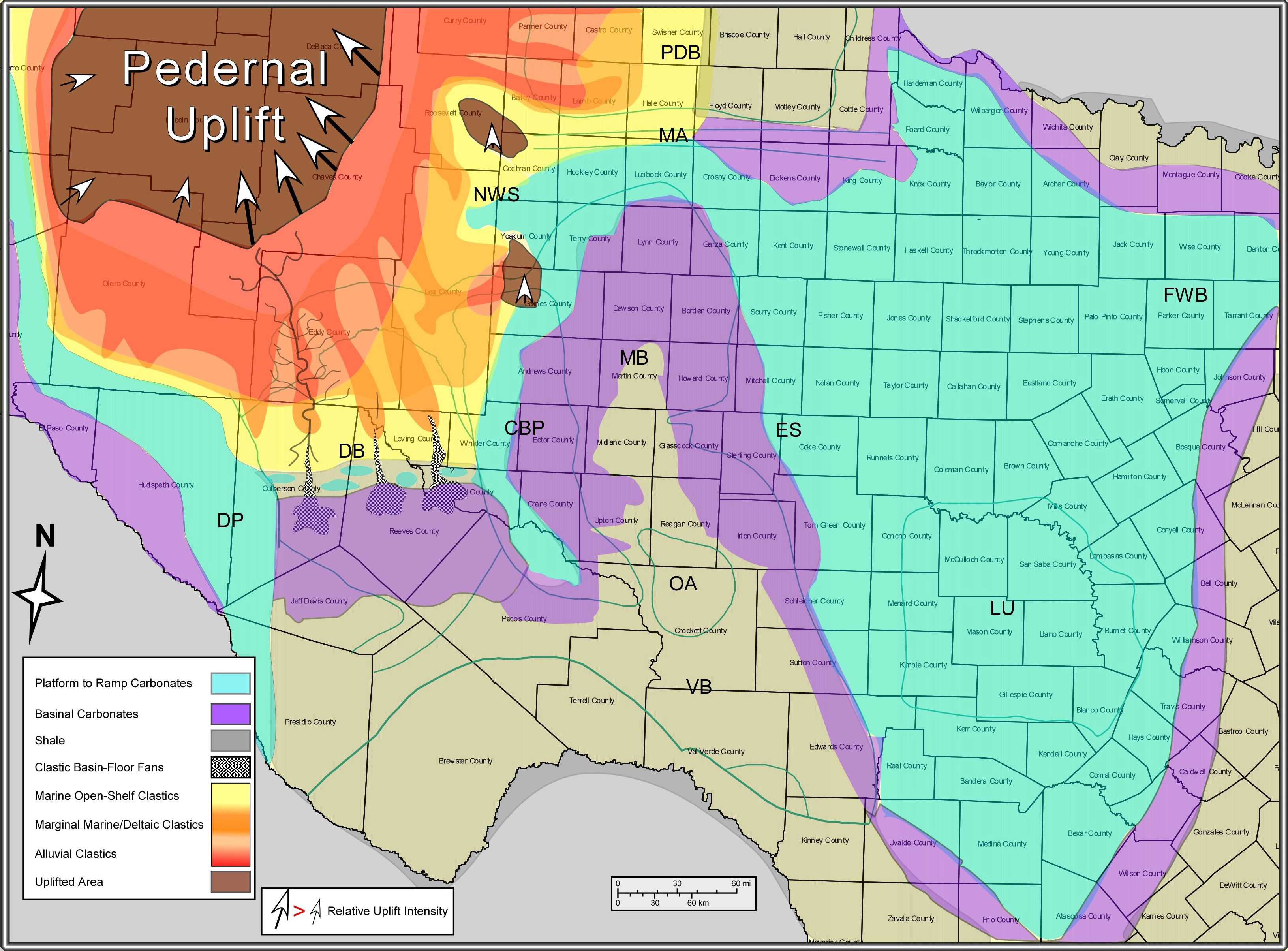

  paleogeography map

Mississippian

Mississippian









Ruppel Miss, 2006



Barnett





References

Core list



Devonian











Woodford

Comer RI



References

Core list



Subcrop map



Ruppel Woodford, 2006



Thirtyone

Thirtyone



References

Core list

regional xs

Subcrop map





Poster 1
Poster 2
Poster 3

    Azalea Field



Buchanan 1-32
Buchanan 2.33
Buchanan 1-35
Crespi Unit 1



    Bakke Field



U A#1



    Bedford Field



    Block 9 Field



Texas Q #8



    Block 31 Field



type log

Ruppel 31, 2006

Ruppel SD, 2004



    Dollarhide Field



    Three Bar Field



Parker 39
TBU 2
TBU 16
TBU 47
TBU 55
TBU 80

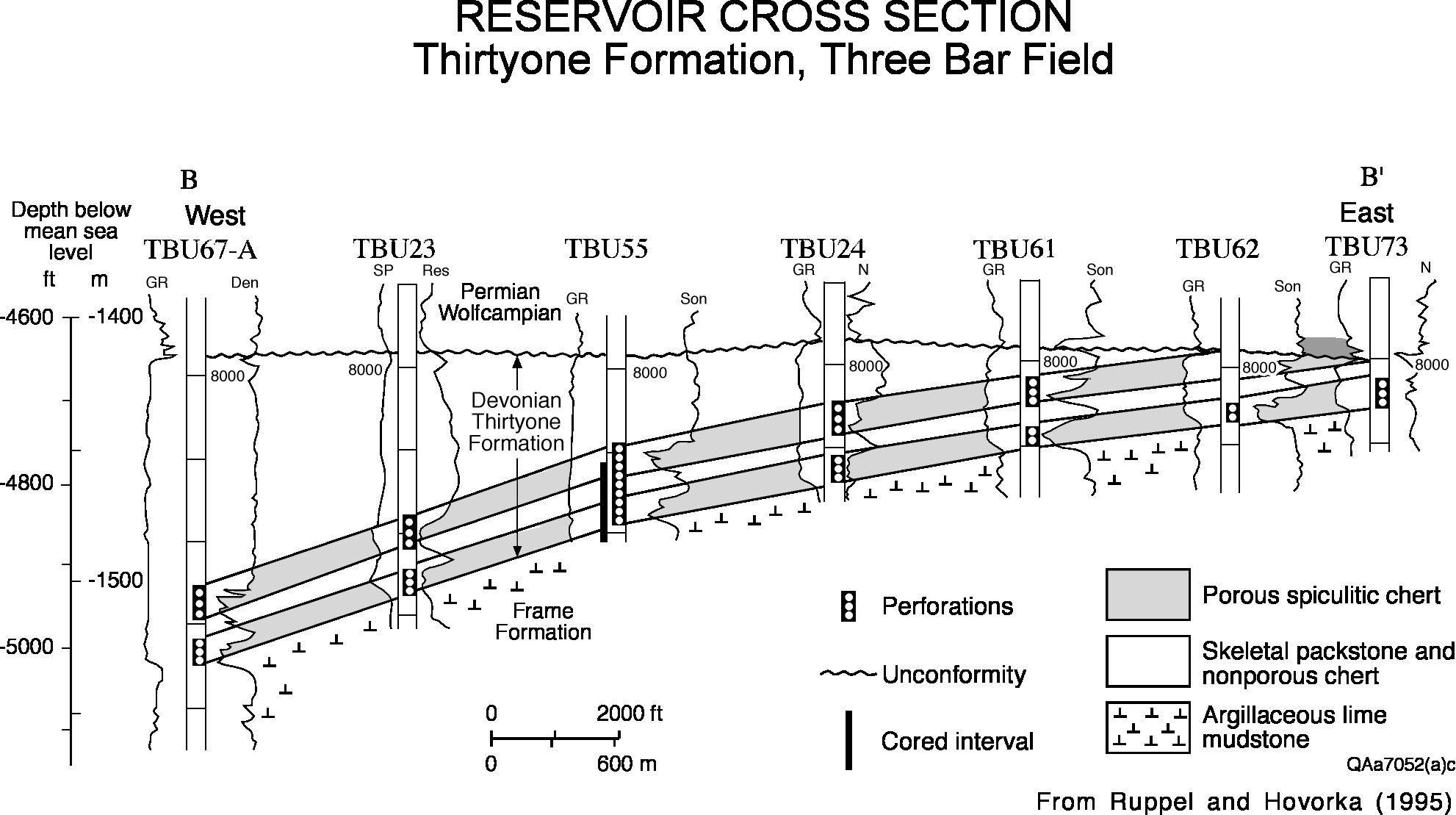

reservoir xs



type log



    Tunis Creek Field



U 19-1 #2



    University Waddell Field

Field report

K #10
Waddell 161
Waddell 162
Waddell 196
Waddell 322
Waddell 323
Waddell 465
Waddell 491
Waddell 551
Waddell 552
Waddell 633
Waddell 655
Waddell 691
Waddell 712
Waddell 767





reservoir xs1
reservoir xs2



type log



Silurian











  Wristen

Wristen



References

Core list



Subcrop map



Ruppel SD, 2004



  Fusselman

Fusselman



References

Core list



Subcrop map



Ruppel SD, 2004



Ordovician











Montoya

Montoya



References

Core list



Subcrop map



Simpson

Simpson



References

Core list



Subcrop map



Ellenburger

Ellenburger Draft





Core list

reservoir xs

Subcrop map



University Blk 13













type log

Barnhart

Field report

Barnhart unit#3_core_anal













Written reports [PDF]

Core analysis data files [Excel]

Reference lists [Word]

Lists of available cores in Permian Basin [Excel]

Cross sections

Regional maps

Type logs

Powerpoint presentations

Posters [PDF]
