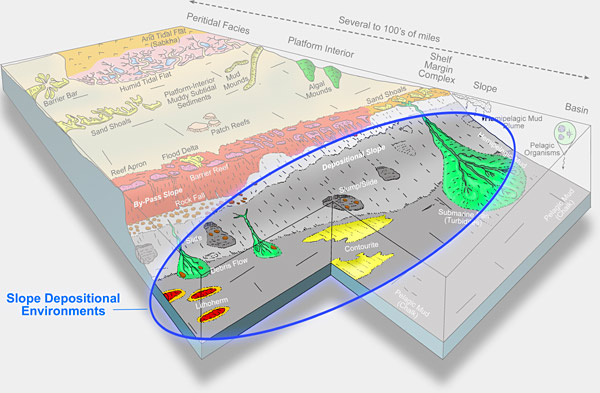

Slope Depositional Environments

Slope Types

Carbonate slopes can be classified into two basic types (McIlreath and James, 1978):

Depositional margin: No strong break in slope; sediments form a continuum down the slope.

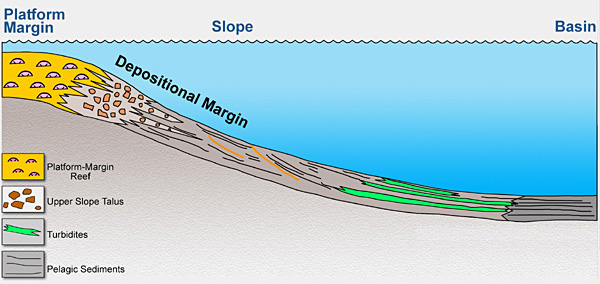

Diagrammatic sketch of depositional slope modified from McIlreath and James (1978).


By-pass margin: There is a strong break in slope; sediments bypass a portion of the slope.

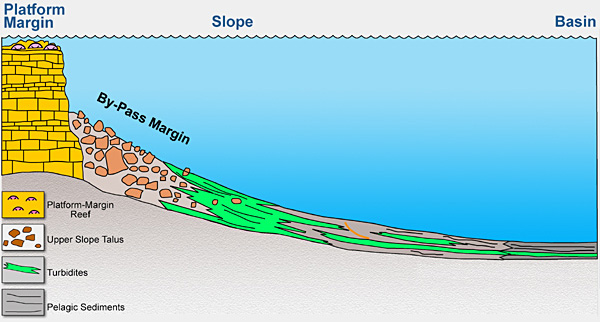

Diagrammatic sketch of a bypass slope modified from McIlreath and James (1978).



Slope Processes

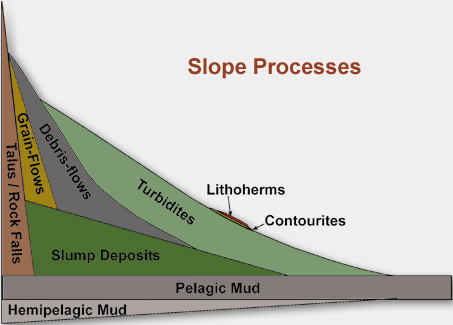

Gravity-flow processes within a background of suspension deposits dominate slope and toe-of-slope sedimentation. Modified diagram by Enos and Moore (1983) presents the basic gravity-flow types and associated deposits encountered in this environment. Click on names to see descriptions of deposits.
