| The components of sequence stratigraphy |
| Cycles Cycle Sets Systems Tracts High Frequency Sequences Composite Sequences |
Defining
a hierarchy of cyclicity is a fundamental but often poorly conducted
step in constructing a stratigraphic framework. The construction
of this hierarchy must be done as a conscious effort and must
include data that many times is considered non-standard for reservoir
characterization. For example, many carbonate core descriptions
recognize cycle tops only where tidal-flat lithofacies are present,
leaving all subtidal cycles uninterpreted. This can create an
inconsistent view of the cycle hierarchy, with a few very thick
cycles and a few very thin cycles and no transitional cycles.
Establishing a stratigraphic hierarchy must entail looking at
both big picture and detailed data Building a robust sequence
framework does not necessarily save time up front, but instead
gives a more predictive and useful end result, and perhaps saves
time and money in the long run. The terminology advocated for cyclostratigraphy is a relative one. In two-dimensional sequence parlance, the terms applied here are composite sequence, high-frequency sequence, and cycles. In the one-dimensional world of cyclostratigraphy this hierarchy tends to be a numbered order system (1st = longest term, 5th = shortest term). In most Precambrian through early Cenozoic data sets it is not possible to constrain the time element sufficiently to determine the average cycle duration. Still, most workers find that a first-pass evaluation of their cycle hierarchy in terms of this stratigraphic ordering is a useful exercise. As better resolution techniques for absolute dating of stratigraphic successions become available, it will be possible to improve the current technique of finding upper and lower bounding surfaces that are loosely constrained radiometrically and dividing the elapsed time implied by the number of cycles in the interval to arrive at a average cycle duration. |
|
|
| Tinker, JSR (1997) |
Above:
the hierarchy of cyclicity as preserved in carbonate settings,
beginning with the cycle, the fundamental building block of carbonate
stratigraphy. Cycles are usually on the order of 1-5 meters thick
and are indicative of predictable changes in water depth and water
energies. Cycles bundled together - usually in groups of 2 to
5 - form cycle sets which can be interpreted across multiple facies
tracts, shown here from shelf crest into a basin. Cycles sets
(shown in yellow) are components of high frequency sequences (shown
in blue) which may be made up of 3 to 7 cycle sets. High frequency
sequences are components of composite sequences. |

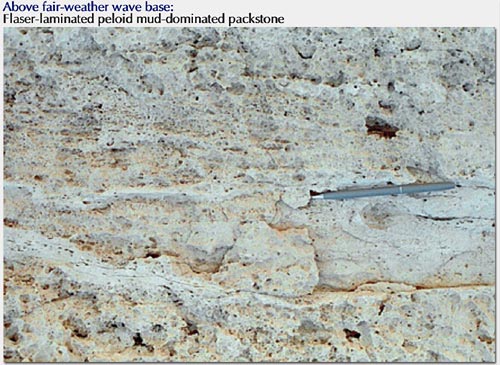

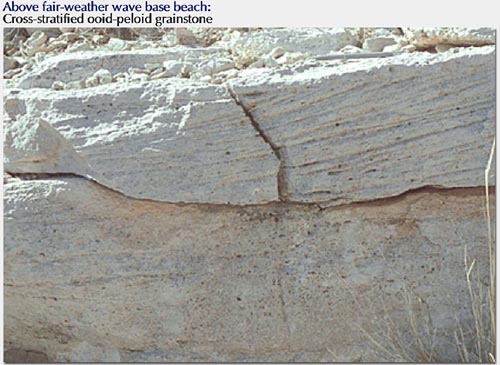

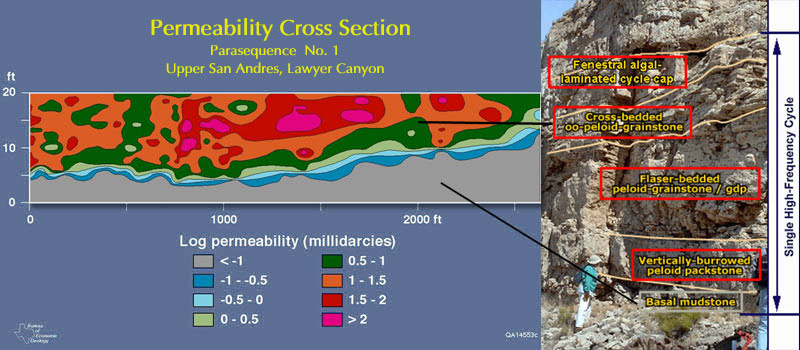

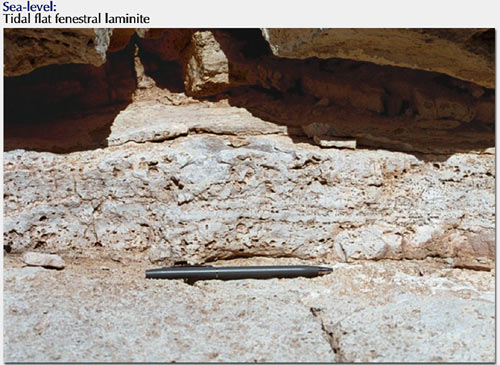

Transposed
onto a analog outcrop (below), the same cycle history can
be clearly identified. Beginning with a basal mudstone up through
burrowed peloid packstone indicating a dominantly below-fair-weather
wave base environment, to bedded peloid grainstones and grain-dominated
packstones into ooid stratified grainstones above-fair-weather
wave base, and finally, a fenestral algal laminated cycle cap.
This rock record, approximately 15 feet thick, represents a single
cycle. Geologically, there is great variability in permeability
in these cycles: mudstones tend to be very tight, low permeability
rocks while the higher-energy facies can have permeability variation
that is quite significant. Understanding reservoir performance
is possible by working out the architecture of the cyclicity and
mapping out relative geometries of mudstones versus other carbonate
rocks in a larger area. |
 |
| Although perm varies greatly in carbonate rocks, cycle bases are commonly mud or clay rich, and very tight (low perm). Interpreting the correct cycle hierarchy becomes critical for understanding reservoir-scale heterogeneity. |
|
Process of Facies Description in Outcrop and Core
|
|
|
|
Definition Cycle Set: Bundles of cycles that show a consistent stratigraphic trend, either progradational, aggradational, or retrogradational (transgressive). Comparable to parasequence set. |
| CYCLE SETS |
|
Cycle sets are bundles of cycles that show a consistent trend, either progradational, aggradational, or retrogradational transgressive (above). Cycle set is analogous to Van Wagoner et als. (1990) parasequence set. In many reservoirs such as the Leonardian Clear Fork of the Permian Basin, this cycle set level is critical for reservoir framework construction as the individual cycles are of insufficient thickness/log response to be mapped (Holtz et al. 1992), and may not have impact on reservoir production. |

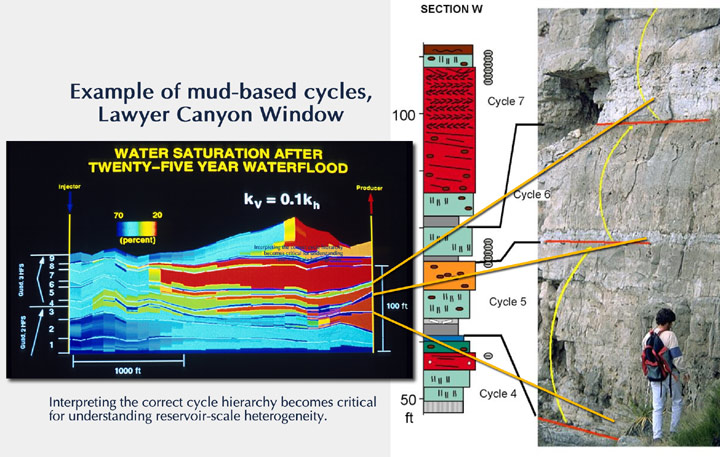

Above:
An outcrop photograph revealing four cycles. Mudstones at the
base of each cycle are clearly visible in gray, with increasing
grain composition (decreasing mud) upward to higher energy environments
at the top, then repeating. This stack is a thinning upward succession
of cycles that are part of a larger cycle set. Again, mudstones
tend to interrupt vertical fluid flow in the subsurface as demonstrated
in an illustration of flow simulation of an outcrop section. The
water injector on the left (shown in blue) and the producing well
on the right (fluids shown in red) illuminate key differences
in architecture, with base cycles being very tight and higher
energy grainstones being swept more efficiently. Architecture
of the reservoir is controlled primarily by mudstones and grainstones
which determine reservoir compartmentalization as well as the
heterogeneity of the reservoir system. Though this example is
relatively flat, in regions of greater accommodation such systems
tend to prograde or backstep and reveal more complex stratal geometry.
For this reason it is very important to work out the stratal geometry
and reservoir architecture to achieve an accurate 3-D reservoir
model. |
HIGH FREQUENCY SEQUENCES By definition a depositional or composite sequence consists of "a relatively conformable succession of genetically related strata bounded at its top and base by unconformities or their correlative conformities" (Mitchum et al.1977). Mitchum and Van Wagoner (1991) recognized, through detailed stratigraphic analysis of core and well log data, that classic Vail-type depositional sequences originally delineated predominantly from seismic data are made up of multiple unconformity-bounded sequences. Mitchum and Van Wagoner (1991) proposed the term composite sequence for those depositional sequences that are comprised of multiple unconformity-bound sequences. The term high-frequency sequence was designated for these higher-frequency unconformity-bound sequences within the larger composite sequence. High-frequency sequences may have all of the attributes of composite sequences, including lowstand, transgressive, and highstand systems tracts and their component cycles and cycle sets.
COMPOSITE SEQUENCES Whereas
high-frequency sequences can be divided into systems tracts composed
of retrogradational and progradational cycle sets, systems tract
delineation in composite sequences uses comparable sets of high-frequency
sequences, or sequence sets (lowstand, transgressive, and highstand).
Both high-frequency and composite sequences are bounded by base-level-fall
to base-level-rise turn-arounds, which can be manifested in several
ways. Bounding surfaces of high-frequency sequences are identified
on the basis of 1) subaerial unconformities and karstification,
2) a turn-around from progradational to retrogradational cycles
(i.e., two-dimensional cycle stacking patterns), 3) major basinward
shifts or offsets in the location of lithofacies tracts across
a single surface, an extreme example of which would be a downward
shift of coastal onlap onto the slope, and 4) analysis of systematic
trends in the thickness and lithofacies proportion of cycles,
commonly referred to as stacking pattern analysis (upward thickening
and upward deepening cycles during base-level rise followed by
upward thinning and upward shallowing to a sequence boundary during
base-level fall).
|
|
